10x6 White Slim Design Aluminum Linear Slot Diffuser (Duct Opening)

Replace your dated 10" × 6" louvered grille with a precision-extruded aluminum linear slot diffuser built for modern American homes — including homes with shallow duct cavities. This flush-mount 10x6 linear slot diffuser surface-mounts on walls, ceilings, and low-traffic floors with a neck that extends only 1-1/4" into the duct opening. No drywall work, no flooring rework, no contractor required.

Clean parallel blades, hidden side screws, and a powder-coated white finish that accepts spray paint for a perfect wall or ceiling color match. Blends seamlessly into contemporary, Scandinavian, minimalist, and luxury interiors.

Standard linear slot diffusers have a tall neck that requires significant depth inside the duct cavity. If your duct opening is shallow — common in thin walls, low-depth ceilings, or older homes with short duct runs — a full-depth diffuser simply will not go in. You’re left choosing between a dated louvered grille or an expensive remodel.

The Green Vent Slim Series solves that. With a neck depth of only 1-1/4" from the face surface, this 10x6 slim linear slot diffuser installs cleanly into duct openings that have almost no cavity depth behind them. Same clean architectural slot profile. Same multi-directional adjustable airflow. Just built to go where standard models can’t.

IMPORTANT: Measure the hole in your wall, ceiling, or floor — do not measure your old vent cover.

This 10x6 slim linear slot diffuser is designed to fit a standard 10" × 6" duct opening (also listed as a 6x10 vent cover or 6x10 wall register in some references).

• Duct opening size: 10" × 6" (this is what you measure)
• Neck depth (Slim Series): 1-1/4" from face surface
• Design note: The linear slot face panel is narrower than a traditional louvered grille. A light paint touch-up may be needed where your old vent cover left an unpainted border around the opening.

Quick check:

1. Remove your existing vent cover.
2. Measure the opening in the wall, ceiling, or floor — not the old cover face.
3. If the opening is approximately 10" × 6", this 10x6 vent cover fits.
4. Check your duct cavity depth: if it is shallow (under 2–3 inches behind the wall or ceiling surface), the Slim Series is built for your situation.

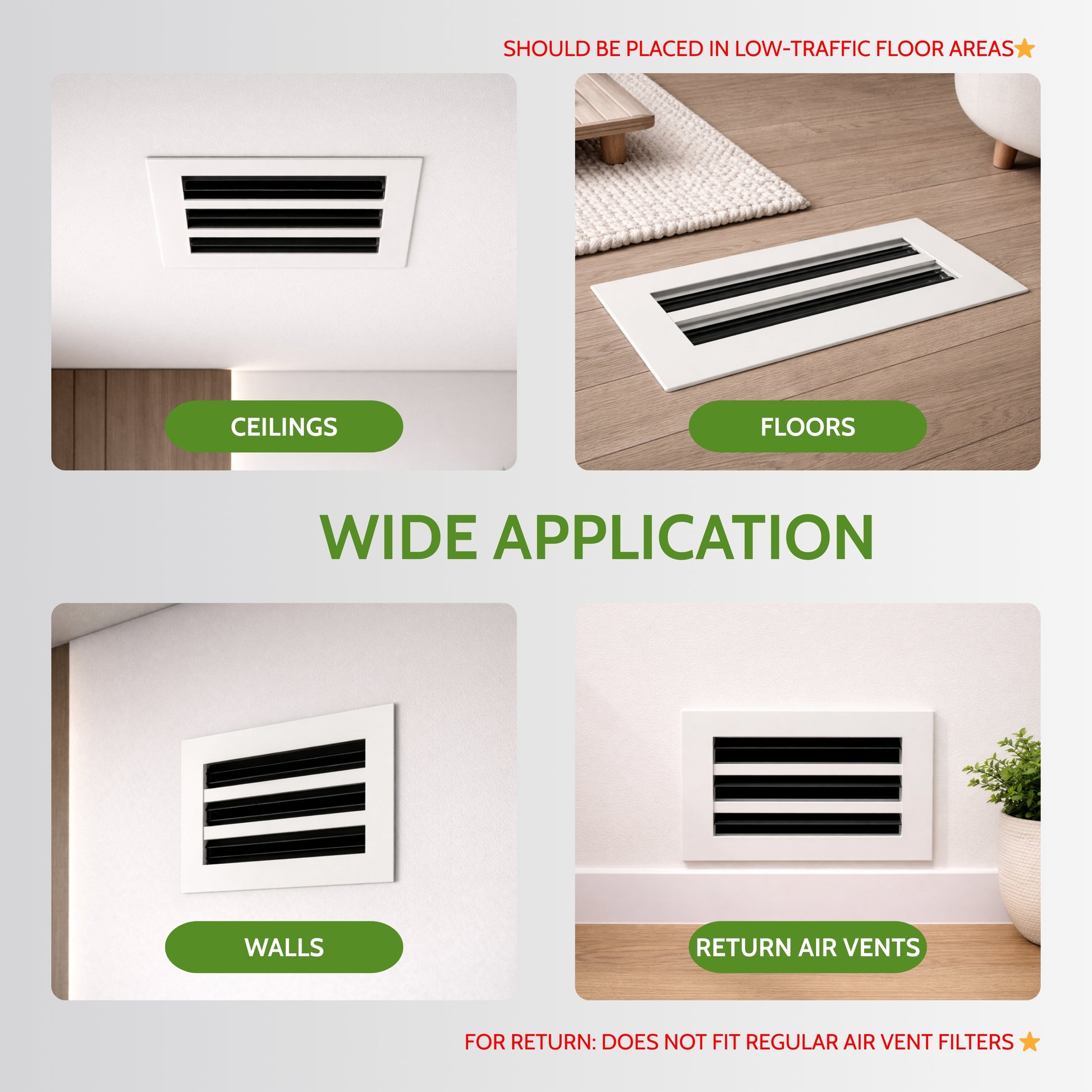

On the wall

Replaces dated stamped-steel grilles in living rooms, hallways, bedrooms, and home offices. The flush profile and clean slot line keep the focus on your interior — not the HVAC. Works as both a decorative supply air register and a return air vent cover. The 1-1/4" neck depth makes it practical even in thin partition walls where standard models have no room to fit.

On the ceiling

A low-profile look for finished basements, modern condos, kitchens, and bathrooms. The slim neck depth is especially suited for drop ceilings and shallow ceiling cavities where full-depth diffusers simply can’t go. Works with both supply and return air openings. A clean finish for any 10x6 ceiling vent cover replacement.

On the floor

The slim, fully-aluminum profile won’t trip or snag and handles light foot traffic. Recommended for low-traffic floor areas such as bedrooms and home offices. For high-traffic floors, consider a heavier-gauge floor register instead.

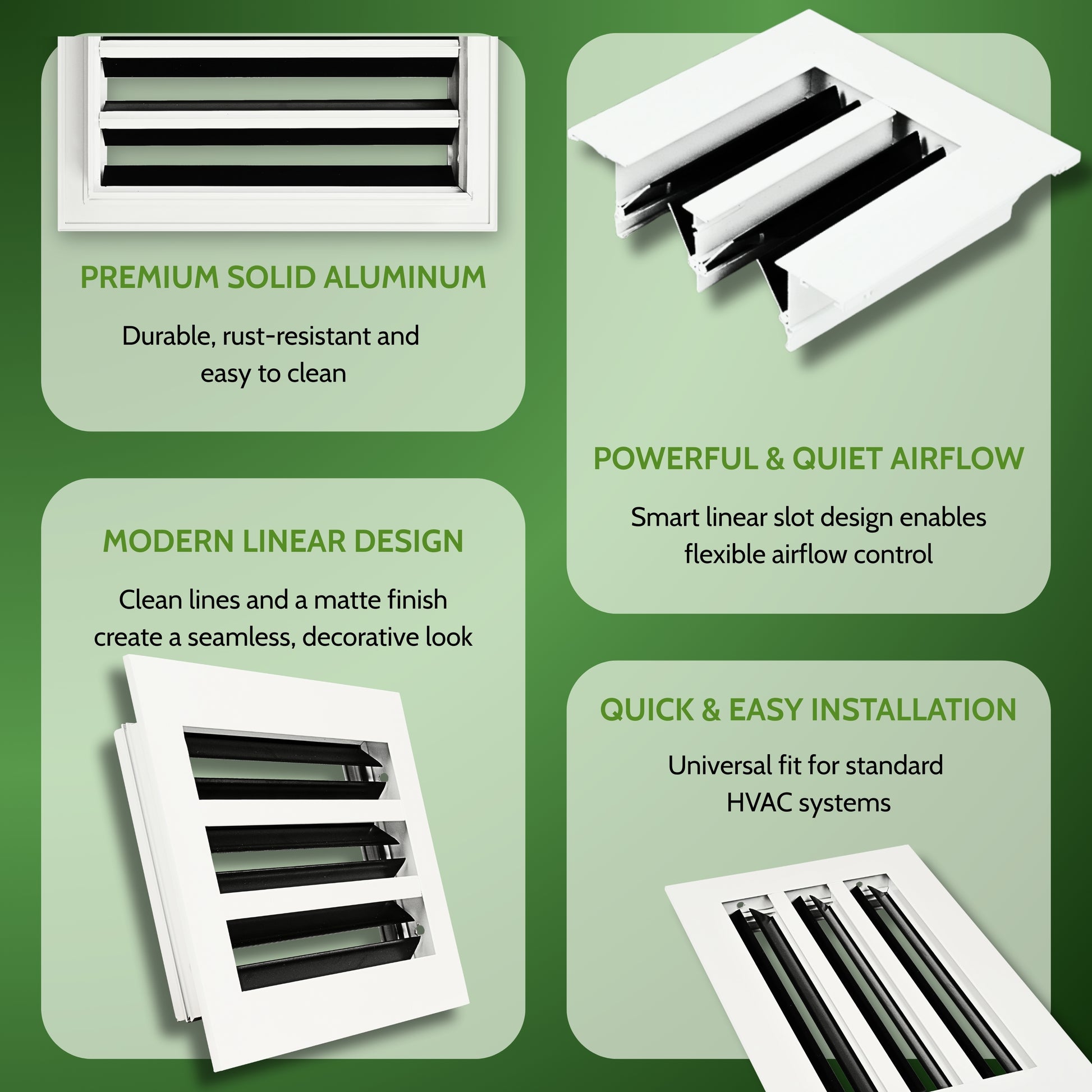

• Slim 1-1/4" Neck Depth: Engineered specifically for shallow duct cavities — only 1-1/4" of neck extends from the face surface into the duct. Installs where full-depth linear slot diffusers cannot, with zero ductwork modification or remodeling required.

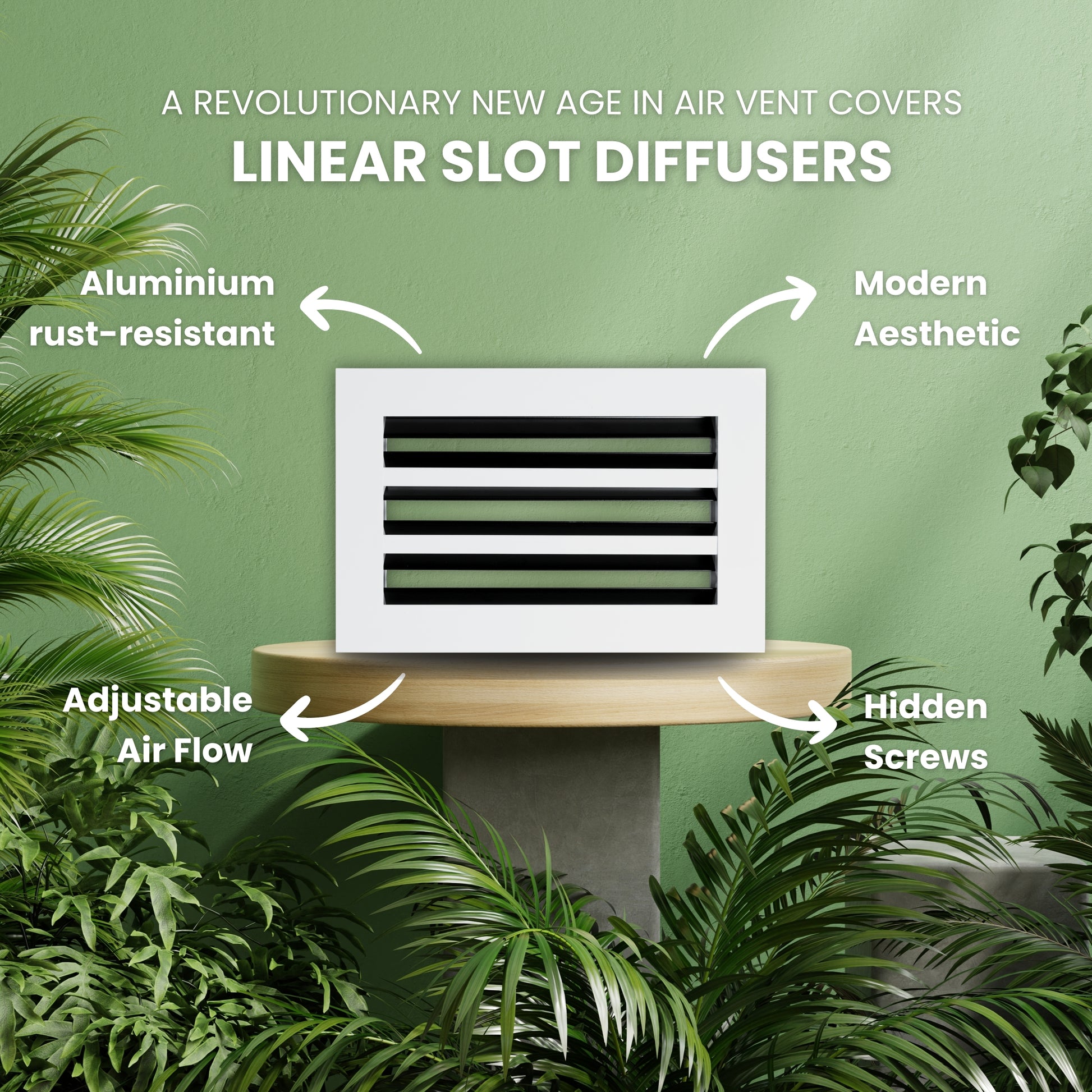

• Alloy Aluminum Construction: Heavy-gauge alloy aluminum frame with precision-spaced blades and zero plastic parts. Rust-proof, warp-resistant, and won’t yellow or crack like plastic alternatives.
• Architectural White Finish: Premium powder-coated surface wipes clean with a damp cloth and accepts standard spray paint for a custom color match. Hidden side screws create a clean, flush look with no visible fasteners on the faceplate.
• Multi-Directional & Quiet Airflow: A precision adjustment bar directs airflow left, right, evenly to both sides, or fully closed to block unused rooms. Wider slot openings allow air to pass at a controlled velocity with less turbulence, significantly reducing the rattling and whistling common in narrow-slot covers. Ideal for bedrooms, nurseries, and home offices.
• Crafted in Vietnam: Designed and manufactured in Vietnam from alloy aluminum — no plastic parts — to meet the expectations of U.S. homeowners and contractors.

Designed as a direct drop-in replacement for standard 10" × 6" duct openings with no modification required — even in the shallowest duct cavities.

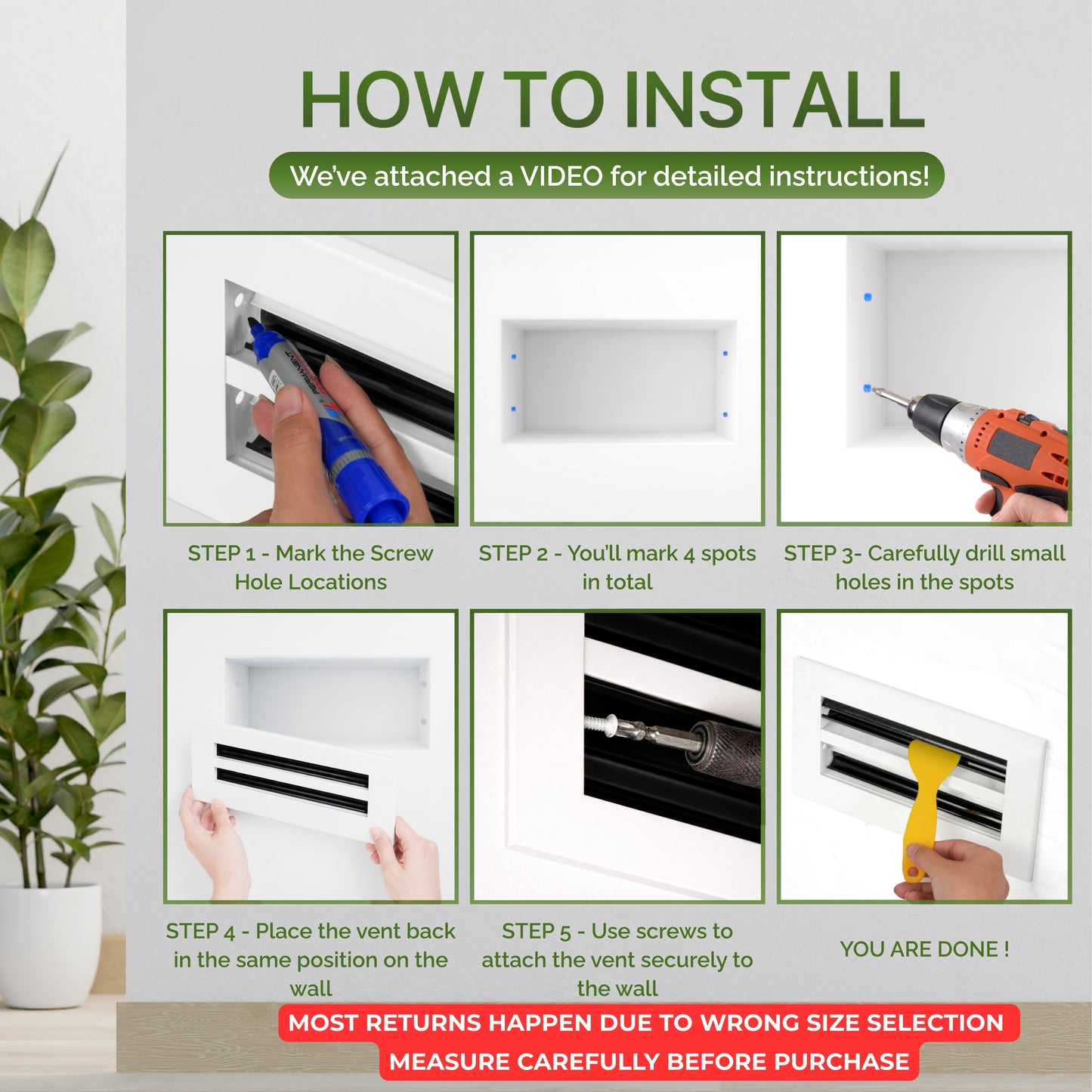

• On Walls & Ceilings: Mounts with the 4 included screws through pre-drilled hidden side holes. Only a screwdriver and the included blade adjustment tool are needed. No drywall edge damage, no visible fasteners on the face.
• On Floors: Simply drop the cover into the existing opening in low-traffic areas — no screws required. Optional screws may be added for extra hold.
• Fully Removable: The unit removes and reinstalls cleanly with no damage. FREE returns if sizing is incorrect — contact support@greenvent.us before or after purchase.

1. What size do I order — 10x6 or face size?

Order by duct opening size. "10x6" means a 10" × 6" duct opening (the hole in your wall, ceiling, or floor). The overall face size of this 10x6 slim linear slot diffuser is 12" × 8" — that’s the visible cover, not the measurement to match.

2. What makes the Slim Design different from a standard 10x6 linear slot diffuser?

The Slim Series has a neck depth of only 1-1/4" from the face surface. Standard linear slot diffusers have a taller neck that requires more depth inside the duct cavity. If your wall, ceiling, or floor has a shallow duct cavity — common in older homes, thin partition walls, or low-depth ceiling builds — the standard model will not fit. The Slim Series is engineered for exactly those spaces. The exterior slot profile, adjustable damper, and aluminum construction are the same as the standard series.

3. My duct cavity is very shallow. Will this actually fit?

Yes — that’s exactly what the Slim Series is for. With only 1-1/4" of neck depth from the face surface, it installs in duct openings where a standard linear slot diffuser has no room to go. As long as your duct opening is 10" × 6" and you have at least 1-1/4" of cavity depth behind the wall or ceiling surface, this fits.

4. Can I install this on a ceiling?

Yes. This 10x6 vent cover mounts on walls, ceilings, and low-traffic floors as long as the duct opening is 10" × 6". The slim neck is especially suited for shallow ceiling cavities where full-depth diffusers have no room. For ceiling installs, use the 4 included screws through the hidden side holes.

5. Does it come with an airflow damper?

Yes — a multi-directional adjustable blade system is built in. Direct airflow left, right, evenly to both sides, or fully close it to block an unused room. An adjustment tool is included in the box.

6. Will it work with both supply and return openings?

Yes for supply air. For return air, this diffuser also works — but note that the slot face is narrower than a typical louvered return grille. For high-return-volume applications, consider the 10x6 air return grille with pre-filter instead. This slim linear slot diffuser is not compatible with standard air vent filters.

7. Can I use a filter with this vent cover?

No. Filters belong at the air handler or furnace, not at individual vent covers — a filter placed at the vent restricts airflow and strains the HVAC system. If you need filtration at the vent opening, use the 10x6 air return grille with pre-filter instead.

8. Can this be installed outdoors?

Yes, but only in sheltered locations such as covered patios, garages, and enclosed porches. The UV-stable, corrosion-resistant powder-coated aluminum finish holds up in covered outdoor areas, but it is not rated for direct rain exposure.
