Collection: 10x10 Vent Covers

10x10 Vent Cover: Types, Sizing & Buying Guide

A 10x10 vent cover is a grille, register, or diffuser designed to fit a duct opening measuring 10 inches × 10 inches — and it is one of the most common square HVAC openings in North American residential construction. Green Vent's aluminum line covers this size across four distinct product types: linear slot diffusers, air return grilles with mesh filters, cube core eggcrate grilles, and exterior gable vents. All are crafted from premium aluminum alloy, the leading corrosion-resistant material for residential vent covers. Confirm your duct opening measures true before choosing your type.

What Is a 10x10 Vent Cover?

A 10x10 vent cover is a grille, register, or diffuser engineered to cover a duct opening that measures exactly 10 inches wide by 10 inches tall. The cover's face is slightly larger — typically 11 to 12 inches on each side — creating a ½" to 1" overlap border that seats flush against the wall or ceiling. This overlap hides the duct edge cleanly without additional framing.

Vent covers in this size serve three core functions: supply air vs. return air (delivering conditioned air into the room), return air (pulling air back to the HVAC system), and exterior ventilation. The 10x10 is a standard square residential dimension commonly found in bedrooms, hallways, and living areas. Once you've confirmed your opening is 10" × 10", the next step is choosing the right cover type for your location and airflow function.

10x10 Vent Cover Types for Every Application

Green Vent offers four distinct 10x10 vent cover types, each engineered for a specific location and airflow function: Linear Slot Diffusers, Aluminum Air Return Grilles with Mesh Filter, Cube Core Eggcrate Return Air Grilles, and Aluminum Gable Vents for exterior use.

Before placing your order, confirm your duct opening measures true — here's how.

10x10 Linear Slot Diffusers

The 10x10 Linear Slot Diffuser is Green Vent's most design-forward option in this size, combining a clean aluminum slot face with precise airflow delivery. Available in both Black and White, it includes an airflow controller for adjustable supply direction. Both mount to wall, ceiling, and floor surfaces and are sold in single packs and 2-packs for consistent multi-room coverage.

10x10 Aluminum Air Return Grilles (Mesh Filter)

The 10x10 Aluminum Air Return Grille is the optimal 10x10 ac vent cover for return air functions — it pulls room air back to the HVAC system while filtering particulates directly at the vent face. An integrated washable mesh pre-filter is built into the aluminum frame, eliminating the need for a separate filter purchase. Available in White for wall and ceiling placement, this 10x10 air vent promotes quieter HVAC operation by keeping debris out of the return port — and the filter removes without tools for easy cleaning.

10x10 Cube Core Eggcrate Return Air Grilles

The 10x10 Cube Core Eggcrate Return Air Grille is the decorative-forward return air option at this size — its geometric cube-core pattern is a clear visual differentiator from standard linear louvers. The aluminum eggcrate face delivers an architectural, grid-like look that works well in living rooms, dining areas, and spaces where aesthetics carry weight. Available in White with an included filter, this 10x10 ceiling vent cover also mounts to walls.

10x10 Aluminum Gable Vents (Exterior)

The 10x10 Aluminum Gable Vent is designed for exterior wall applications — specifically attic gable ventilation — not interior HVAC supply or return. Its natural aluminum alloy finish offers exterior-grade corrosion resistance, and an included insect mesh prevents pest entry while supporting passive airflow. This size is a standard fit for smaller attic bays and outbuildings where cold air return and moisture control are the primary goals.

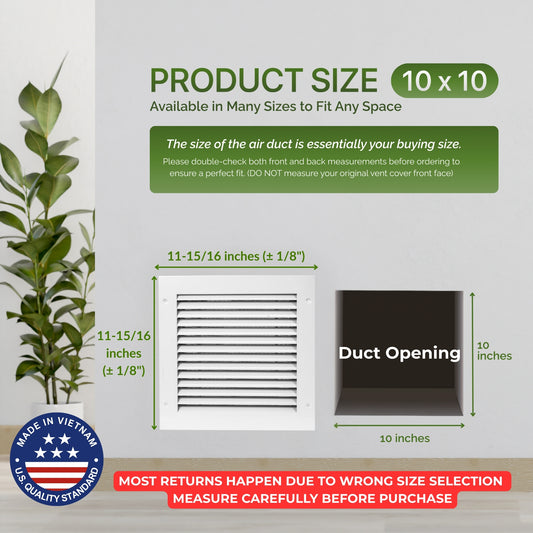

How to Measure for a 10x10 Vent Cover

Always measure the duct opening — not the old cover's face — before ordering a 10x10 vent. This is the most common sizing mistake homeowners make, and it leads to avoidable returns.

1. Remove the old cover and measure the exposed duct width × height in inches.
2. Order the 10x10 size if your measurement reads approximately 9¾" × 9¾" — this confirms a standard 10" nominal duct opening.
3. Check your wall or ceiling material depth to confirm the cover's border tabs will seat flush against the surface.

The cover's face will always be larger than 10" × 10" to create the overlap border — this is correct and expected. For a complete walkthrough, see the complete vent cover sizing guide.

Key Features to Evaluate Before You Buy

Four feature variables determine the performance and longevity of a 10x10 vent cover: material, airflow control, filter integration, and finish.

Aluminum's natural oxide layer provides corrosion resistance without coatings, outperforming painted steel in humid residential environments. For a deeper material breakdown, see the aluminum vs. steel vent covers.

Frequently Asked Questions

Does a 10x10 vent cover fit a 9¾" duct opening?

Yes — a 9¾" measurement confirms a 10" nominal duct opening. HVAC duct openings are manufactured in whole-inch nominal increments, so a 9¾" reading maps directly to the 10x10 cover size. The cover's overlap border of ½" to 1" per side creates a flush, gap-free mount. Order the 10x10 with confidence.

Is aluminum better than plastic for a 10x10 vent cover?

Yes — aluminum outperforms plastic for durability, heat tolerance, and long-term aesthetics in every residential application. Plastic covers can warp and discolor from HVAC temperature cycling, particularly in supply-air positions. Green Vent's aluminum alloy covers are lightweight yet structurally rigid, maintaining shape and finish without degradation. For the full breakdown, see the material comparison guide.

Can I install a 10x10 vent cover myself?

Yes — installation requires no specialist and typically takes under 15 minutes. All Green Vent 10x10 covers are engineered for tool-minimal DIY replacement: align the cover over the duct opening, secure with the included screws or press-fit tabs, and confirm airflow. No HVAC shutdown is required to replace a vent cover. Follow the step-by-step installation guide for the complete walkthrough.
