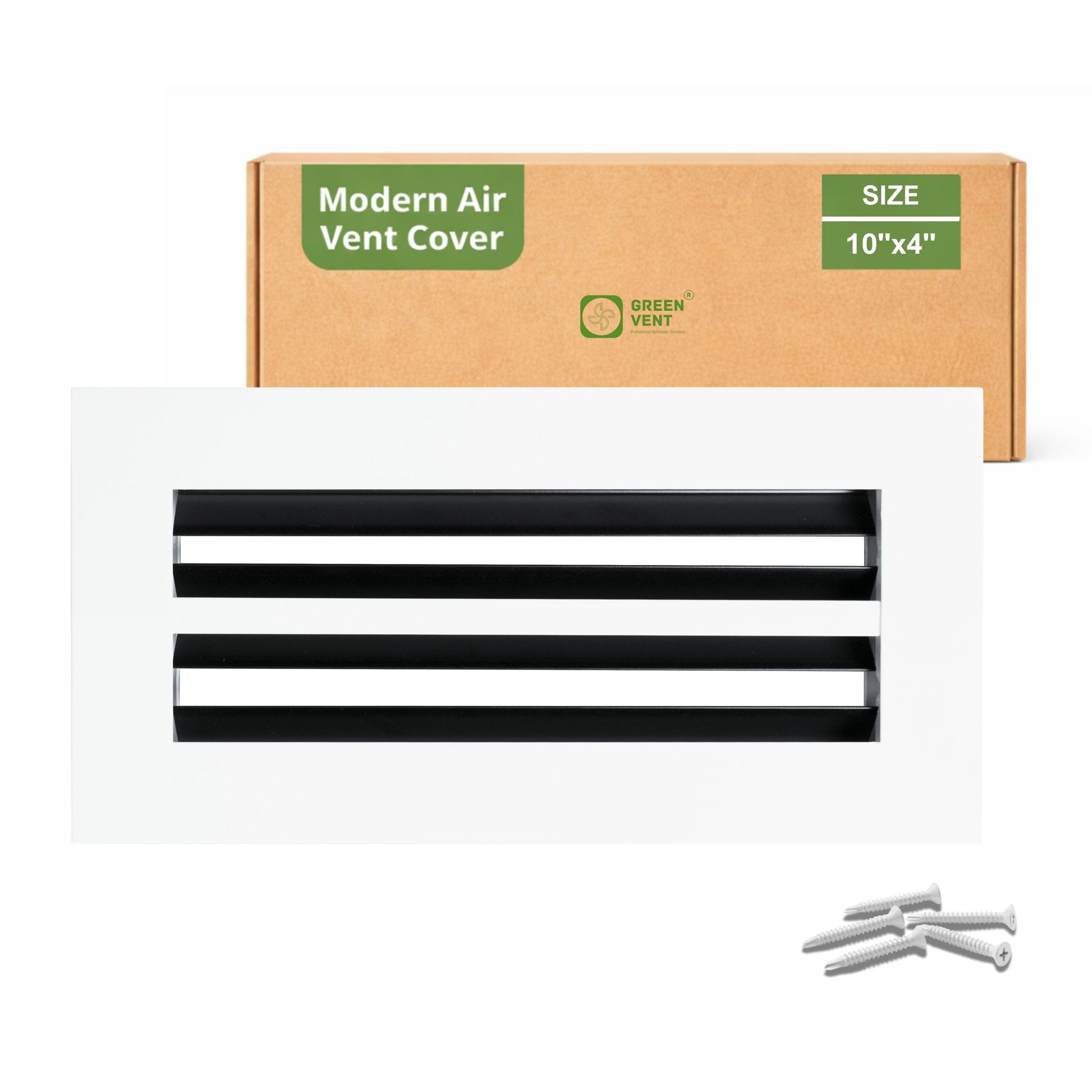

10x4 White Slim Design Aluminum Linear Slot Diffuser (Duct Opening)

Replace your dated 10" × 4" louvered grille with a precision-built aluminum linear slot diffuser designed for modern American homes — including homes with shallow duct cavities. This flush-mount 10x4 linear slot diffuser surface-mounts on walls, ceilings, and low-traffic floors with a neck that extends only 1-1/4" into the duct opening. No drywall work, no flooring rework, no contractor required.

Clean parallel blades, hidden side screws, and a powder-coated white finish create a clean architectural look for narrow hallways, compact bedrooms, small home offices, and tight wall or ceiling openings. The finish can also be spray painted for a closer wall or ceiling color match.

Standard linear slot diffusers have a taller neck that requires more depth inside the duct cavity. If your duct opening is shallow — common in thin walls, low-depth ceilings, older homes, or short duct runs — a full-depth diffuser may not go in cleanly.

The Green Vent Slim Series solves that fitment problem. With a neck depth of only 1-1/4" from the face surface, this 10x4 slim linear slot diffuser installs cleanly into duct openings with limited cavity depth. It keeps the same clean architectural slot profile and multi-directional airflow control, while being especially helpful in narrow wall cavities and older homes where a standard diffuser neck can bottom out quickly.

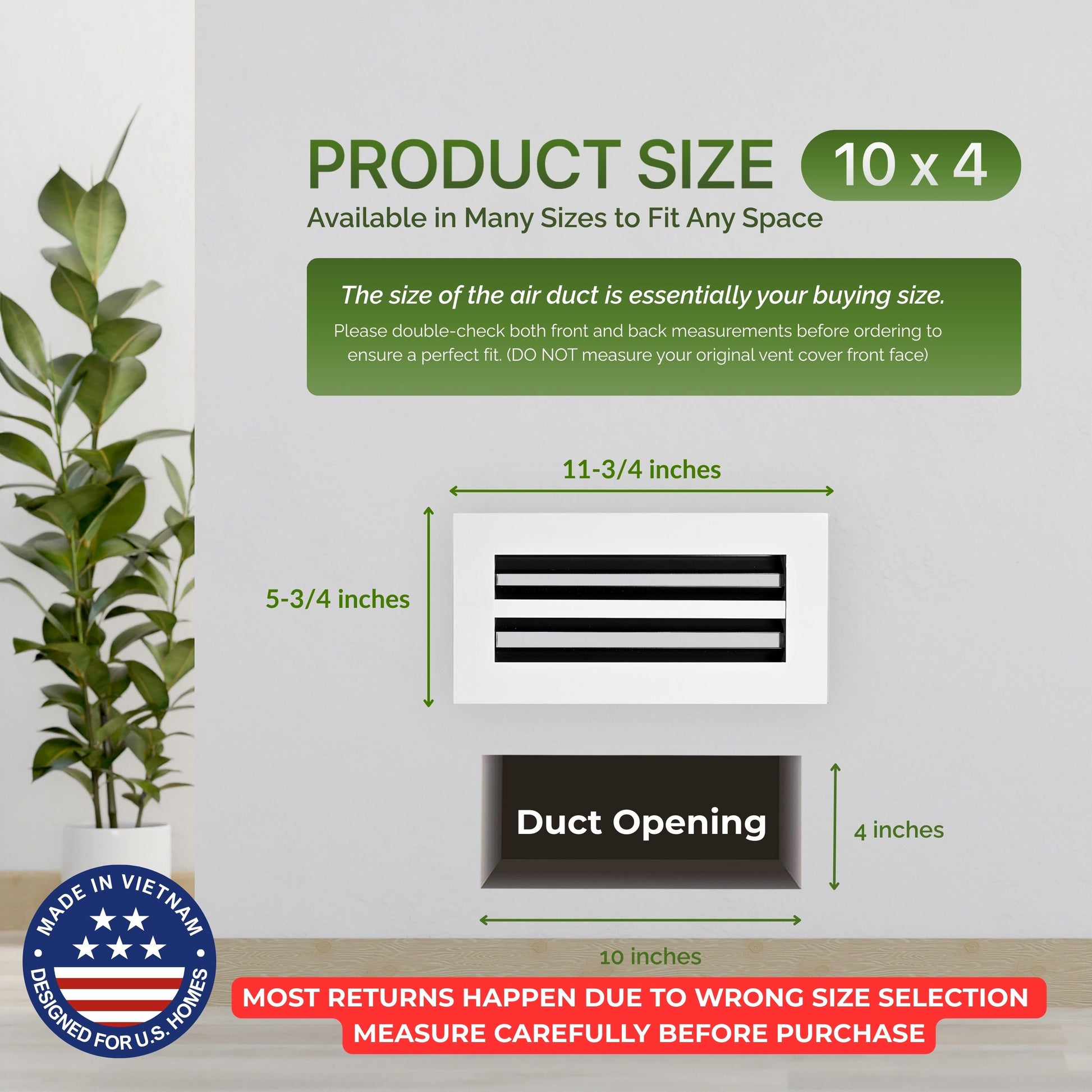

IMPORTANT: Measure the hole in your wall, ceiling, or floor — do not measure your old vent cover.

This 10x4 slim linear slot diffuser is designed to fit a standard 10" × 4" duct opening (also listed as a 4x10 vent cover or 4x10 wall register in some references).

• Duct opening size: 10" × 4" (this is what you measure)
• Neck depth (Slim Series): 1-1/4" from face surface
• Design note: The linear slot face panel is narrower than a traditional louvered grille. A light paint touch-up may be needed where your old vent cover left an unpainted border around the opening.

Quick check:

1. Remove your existing vent cover.
2. Measure the opening in the wall, ceiling, or floor — not the old cover face.
3. If the opening is approximately 10" × 4", this 10x4 vent cover fits.
4. Check your duct cavity depth: if it is shallow, the Slim Series is built for that situation.

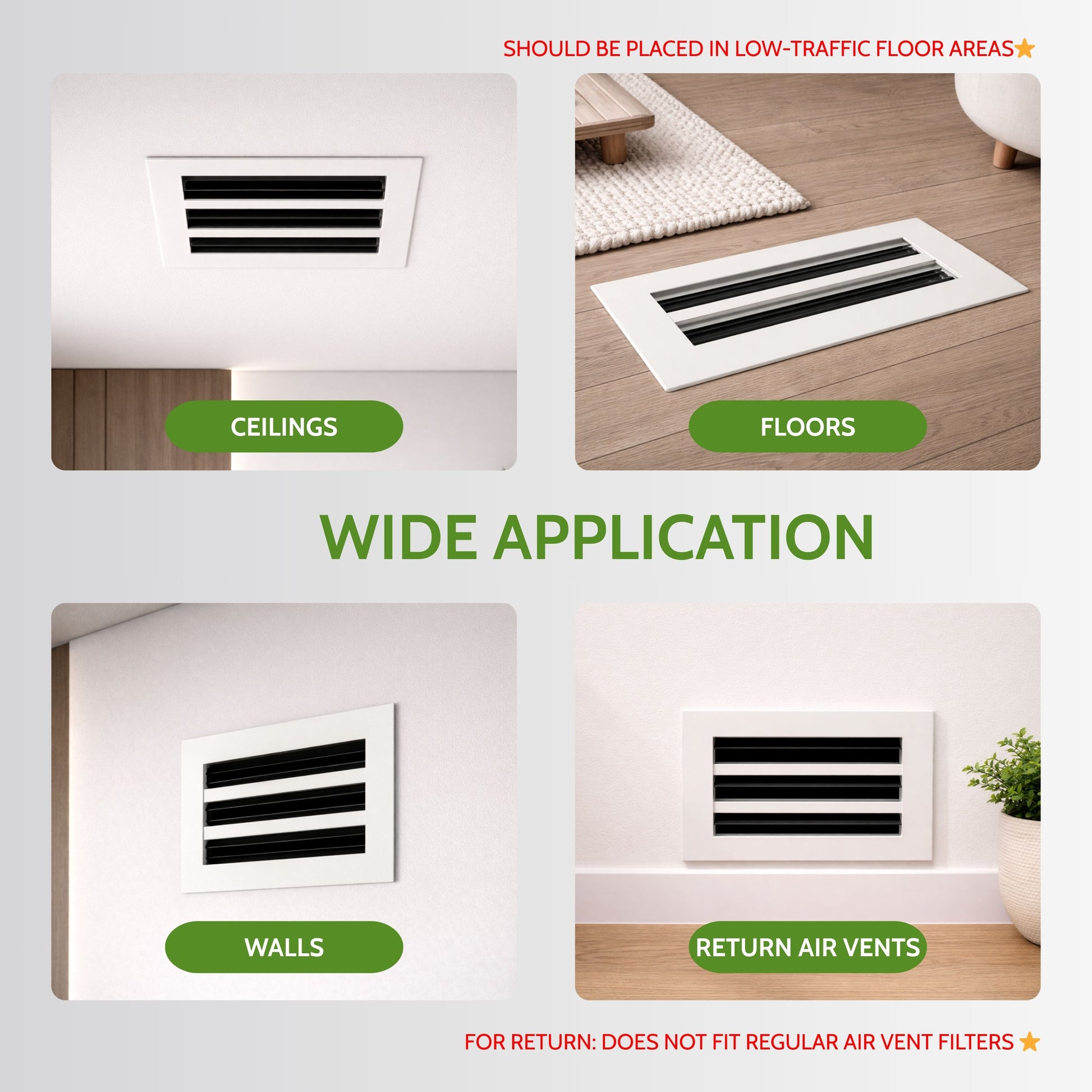

On the wall

Replaces dated stamped-steel grilles in narrow hallways, compact bedrooms, small home offices, and tight wall or ceiling openings. The flush profile and clean slot line keep the focus on your interior — not the HVAC. Works as both a decorative supply air register and a return air vent cover. The 1-1/4" neck depth makes it practical in thin partition walls where standard models may not have room to fit.

On the ceiling

A low-profile look for finished basements, modern condos, kitchens, bathrooms, and low-depth ceiling builds. The slim neck depth is especially useful where full-depth diffusers simply cannot go. Works with both supply and return air openings.

On the floor

The slim, fully-aluminum profile is suitable for low-traffic floor areas such as bedrooms and home offices. For high-traffic walk paths, consider a heavier-gauge floor register instead.

• Slim 1-1/4" Neck Depth: Engineered specifically for shallow duct cavities — only 1-1/4" of neck extends from the face surface into the duct. Installs where many full-depth linear slot diffusers cannot, with no ductwork modification or remodeling required.

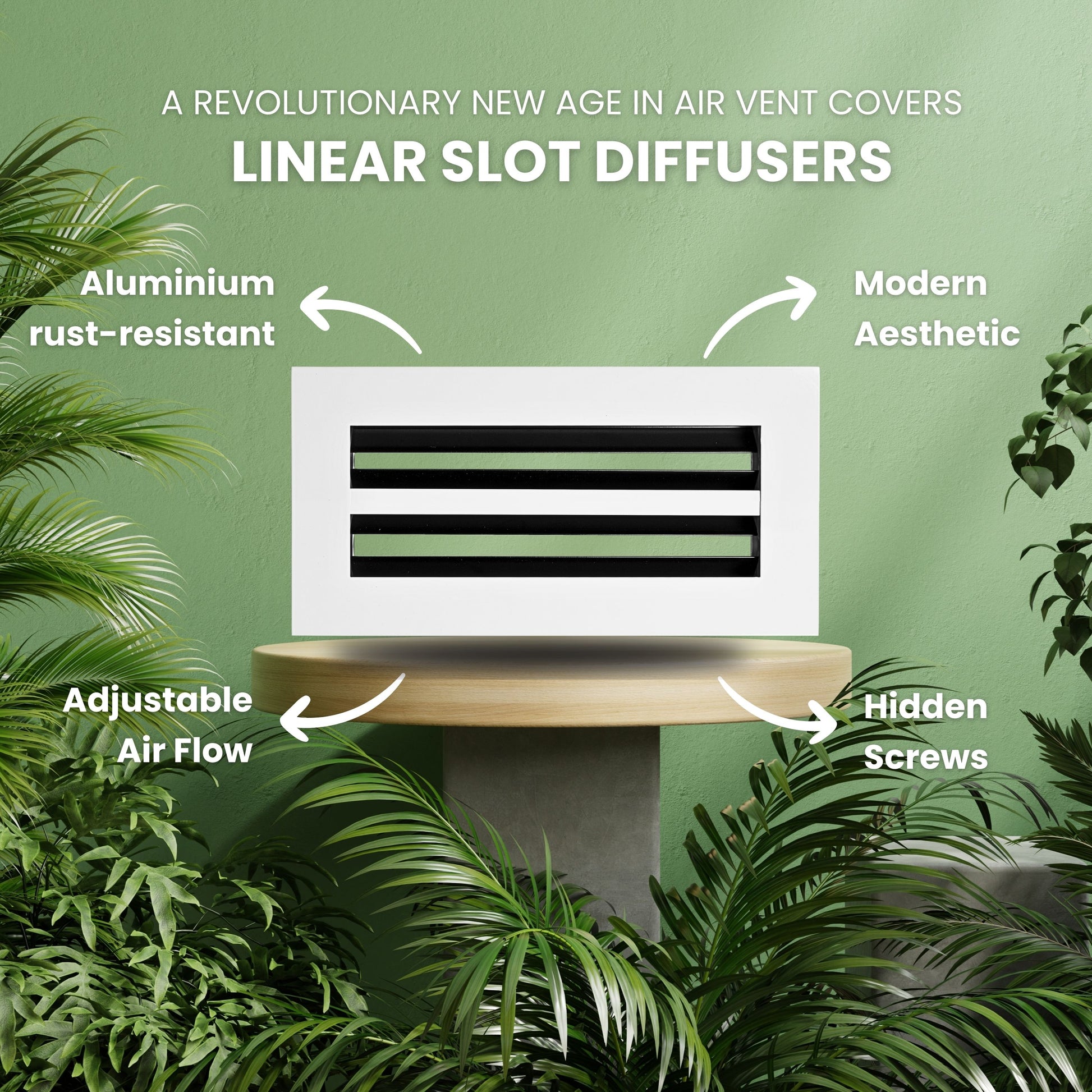

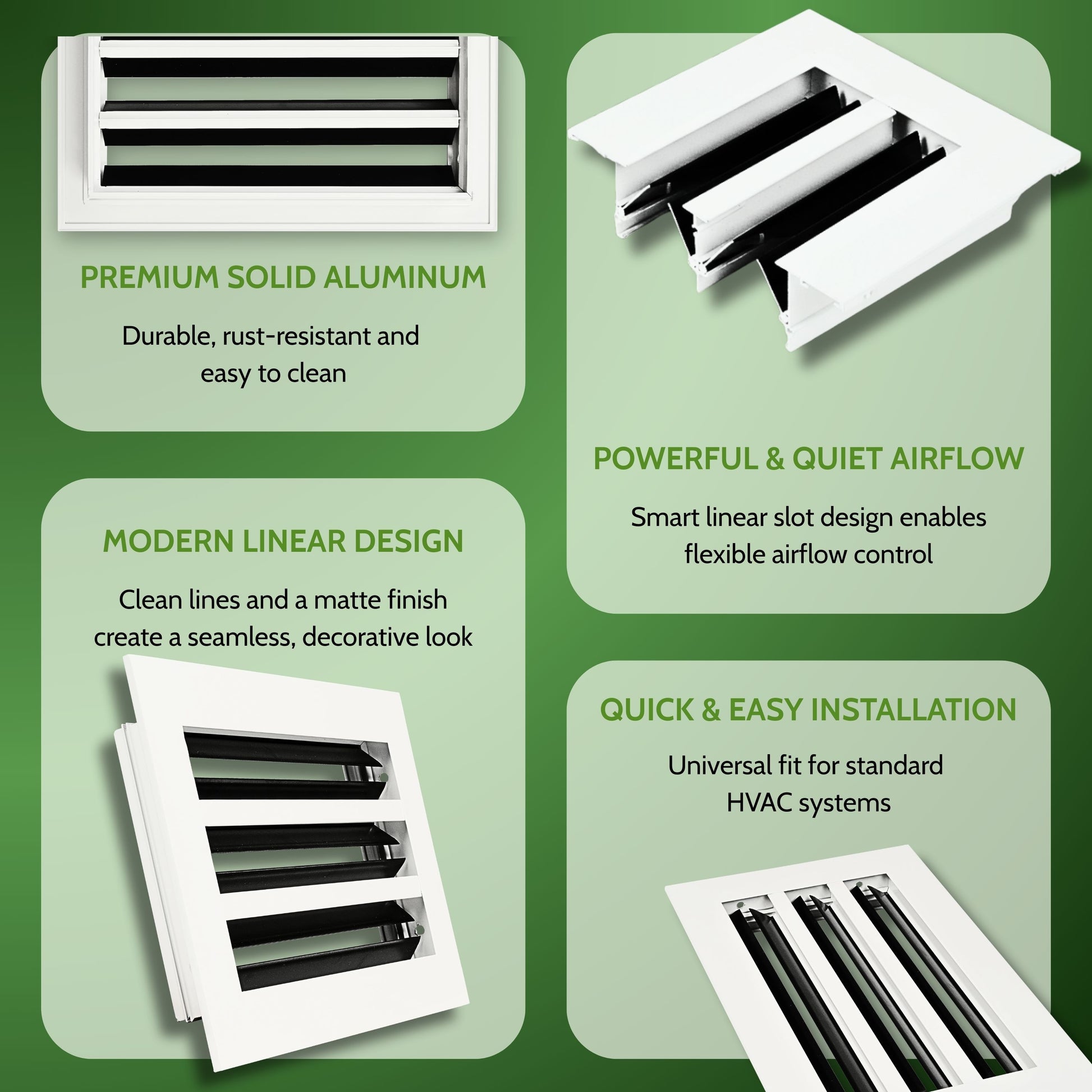

• Alloy Aluminum Construction: Heavy-gauge alloy aluminum frame with precision-spaced blades and zero plastic parts. Rust-proof, warp-resistant, and won’t yellow or crack like plastic alternatives.
• Architectural White Finish: Premium powder-coated surface wipes clean with a damp cloth and accepts standard spray paint for a custom color match. Hidden side screws create a clean, flush look with no visible fasteners on the faceplate.

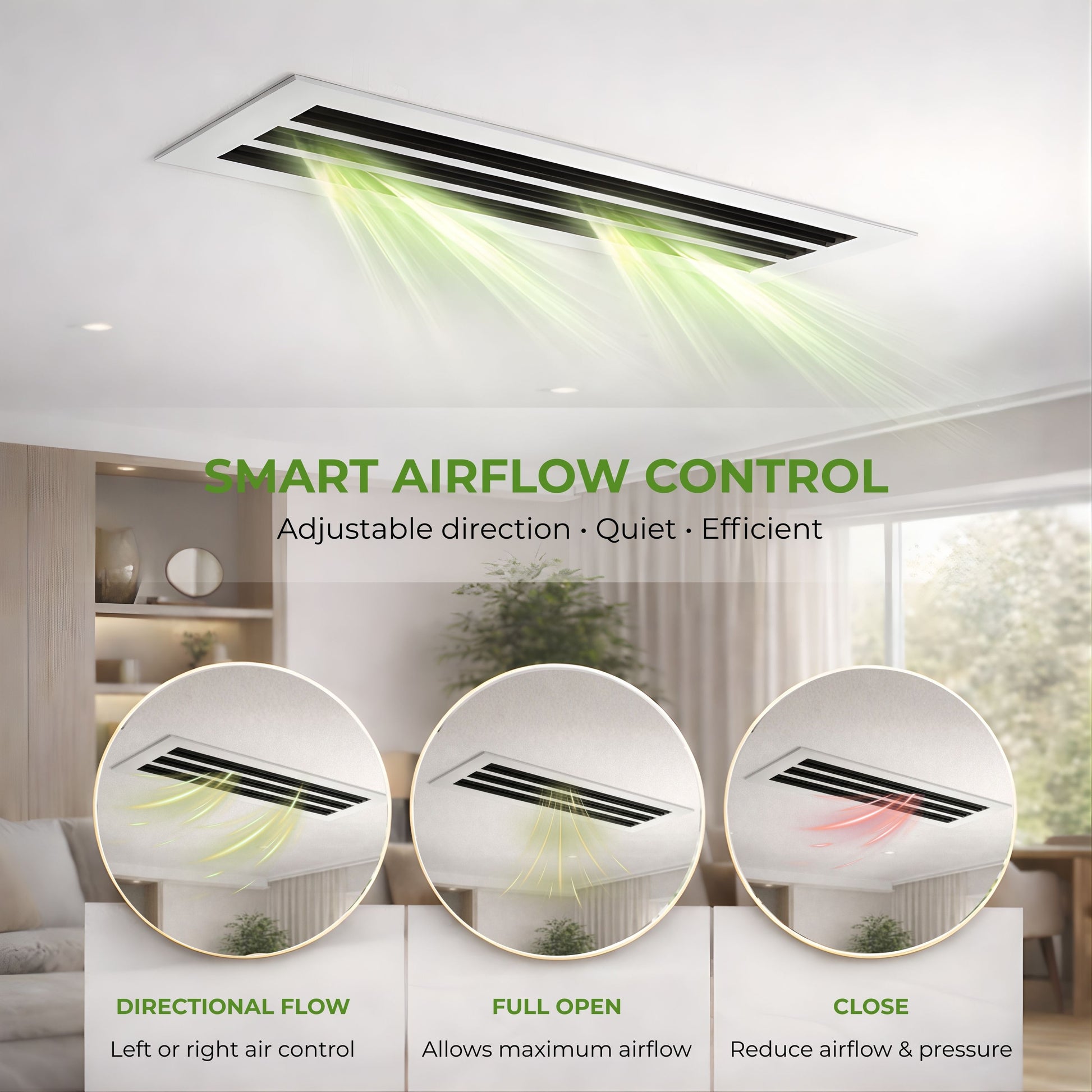

• Multi-Directional Adjustable Airflow: A precision adjustment bar directs airflow left, right, evenly to both sides, or fully closed to block unused rooms. Wider slot openings help air pass at controlled velocity with less turbulence, supporting quieter everyday operation in bedrooms, nurseries, and home offices.
• Crafted in Vietnam: Designed and manufactured in Vietnam from alloy aluminum — no plastic parts — to meet the expectations of U.S. homeowners and contractors.

Designed as a direct drop-in replacement for standard 10" × 4" duct openings with no modification required — even in shallow duct cavities.

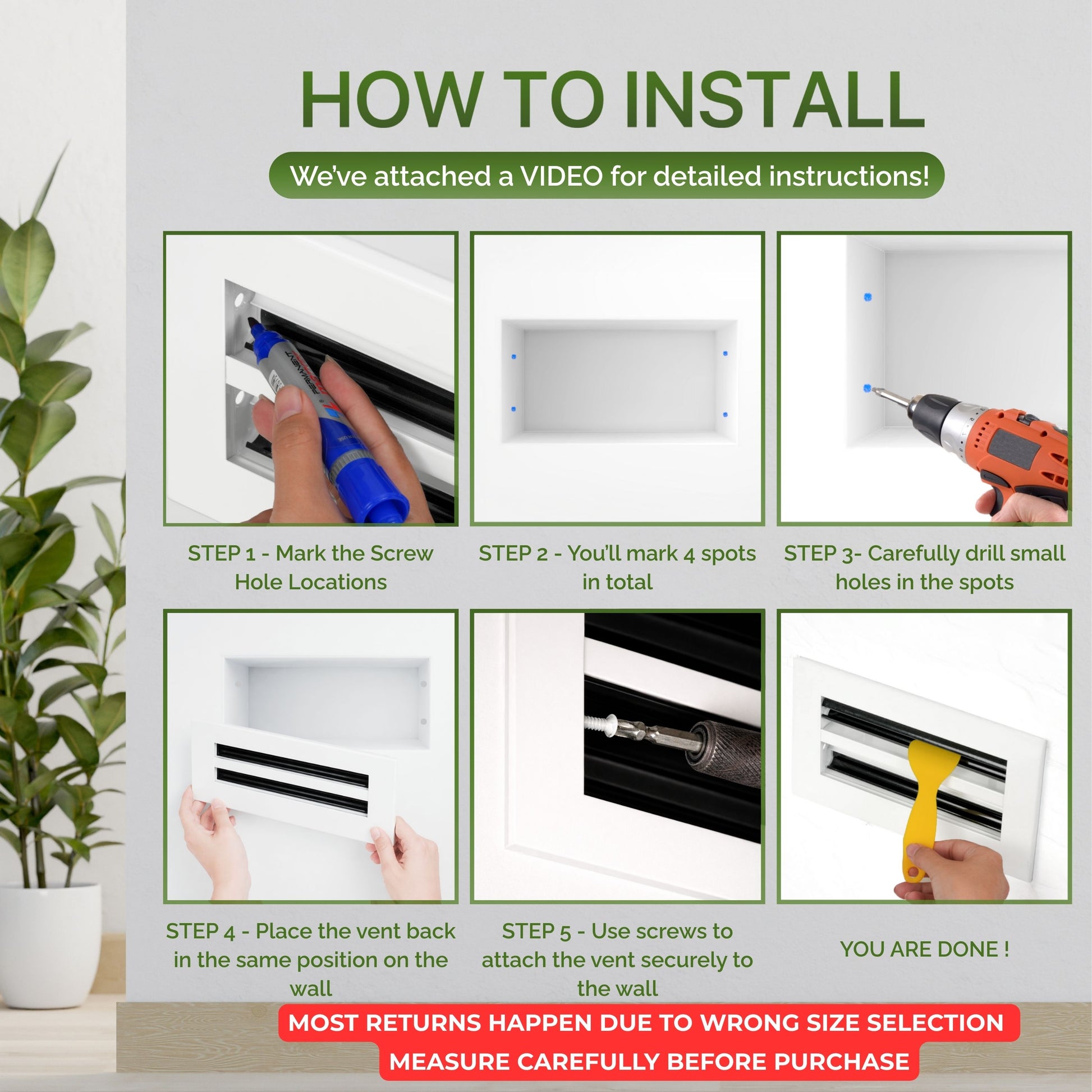

• On Walls & Ceilings: Mounts with the included screws through pre-drilled hidden side holes. Only a screwdriver and the included blade adjustment tool are needed. No drywall edge damage, no visible fasteners on the face.
• On Floors: Simply drop the cover into the existing opening in low-traffic areas. Optional screws may be added for extra hold.
• Fully Removable: The unit removes and reinstalls cleanly. If you are unsure about sizing, contact support@greenvent.us before ordering.

1. What size do I order — 10x4 or face size?

Order by duct opening size. "10x4" means a 10" × 4" duct opening — the hole in your wall, ceiling, or floor. Do not order by the face size of your old cover.

2. What makes the Slim Design different from a standard 10x4 linear slot diffuser?

The Slim Series has a neck depth of only 1-1/4" from the face surface. Standard linear slot diffusers usually need more depth inside the duct cavity. If your wall, ceiling, or floor has a shallow duct cavity, the Slim Series is built for that fitment issue while keeping a modern slot profile and adjustable airflow.

3. My duct cavity is very shallow. Will this actually fit?

Yes, that is the main purpose of the Slim Series. As long as your duct opening is approximately 10" × 4" and you have at least 1-1/4" of clearance behind the surface, this slim diffuser is designed to fit where many standard models cannot.

4. Can I install this on a ceiling?

Yes. This 10x4 vent cover mounts on walls, ceilings, and low-traffic floors. The slim neck is especially useful for shallow ceiling cavities where full-depth diffusers have limited room.

5. Does it come with an airflow damper?

Yes. A multi-directional adjustable blade system is built in, allowing you to direct airflow left, right, evenly to both sides, or close it for an unused room. An adjustment tool is included.

6. Will it work with both supply and return openings?

Yes for supply air. It can also be used on return openings, but the slot face is narrower than a typical louvered return grille. For high-return-volume applications, consider the 10x4 air return grille with pre-filter instead.

7. Can I use a filter with this vent cover?

No. Filters belong at the air handler or furnace, not at individual vent covers. A filter placed at the vent can restrict airflow and strain the HVAC system. If you need filtration at the vent opening, use an air return grille with pre-filter.

8. Can this be installed outdoors?

Yes, but only in sheltered locations such as covered patios, garages, and enclosed porches. It is not rated for direct rain exposure.
