You pull up the old floor vent, measure it, and order a replacement in that size. It arrives, you drop it in, and it falls straight through the hole. Or the opposite: you order by the hole, and the new cover looks huge next to the old one, so you send it back. Both mistakes come from the same place.
Floor register sizes like 4x10, 4x12, or 2x12 are named after the duct opening in your floor, not the size of the cover you see. The cover is always bigger than the hole so it can rest on the floor around it. Once you know that, buying the right size takes about two minutes and a tape measure.
Quick Answer
- The size = the hole. Lift the old register and measure the open duct. A 4x10 register fits a hole about 4 inches wide and 10 inches long; a 4x12 fits a 4" × 12" hole, and so on.
- The face is bigger on purpose. For example, a Green Vent 4x10 aluminum floor register has a 12" × 6" face that overlaps the opening on every side.
- Supply or return matters too. If warm or cool air blows out, you need a register with a damper. If air is pulled in, you need a return grille.
Why Floor Register Sizes Are So Easy to Get Wrong
Take 4x10, the most common floor vent size in American homes with basements and crawlspaces, especially across the Northeast and Midwest, where ducts run under the floor and registers sit below windows. Because it is so common, people assume they already know the size and skip the measuring step.
The trouble is that three different numbers describe the same register, and listings do not always say which one they mean. Here is how they line up on a 4x10:
| Measurement | What it is | Green Vent 4x10 aluminum floor register |
|---|---|---|
| Duct opening | The hole in the floor. This is the size you order by. | 4" × 10" |
| Neck size | The part that drops into the hole. Slightly smaller so it slides in. | 3-3/4" × 9-3/4" |
| Face size | The visible cover that rests on the floor. | 12" × 6" |
If you measure the old cover, you get the face size, roughly 6 × 12 in this example. Order a "6x12" register and you will get one built for a much bigger hole. The same trap applies to every size, and it is the single most common reason floor vents get returned.
How to Measure a Floor Duct Opening (2 Minutes)
Step 1: Lift the old register
Most floor registers simply lift out. If yours is screwed down, remove the screws first. Vacuum any dust around the hole while it is open.
Step 2: Measure the hole, not the cover
Measure the inside of the opening, short side first, then long side. Round to the nearest inch. A hole around 4" × 10" means you need a 4x10 register; around 4" × 12" means a 4x12, no matter how big the old cover looked.
Step 3: Check the depth
Look down into the opening. You want enough room under the floor for the register's neck and damper to drop in without hitting the duct boot. Standard metal boots usually have plenty of space, but older homes can surprise you.
Step 4: Decide supply or return
Turn the system on. Air blowing out = supply (you need a floor register with a damper). Air being pulled in = return (you need a return grille). Not sure? Our guide to return air vents vs. supply vents walks through it.
Measure the Duct Opening, Not the Old Cover
We put this line on every Green Vent product page for a reason. The face of a replacement register will rarely match your old one exactly, and that is fine. What has to match is the hole. A wider face is actually a bonus: it covers worn finish, stains, and gaps that the old cover left behind.
For other sizes and a full size chart, see standard floor vent cover sizes.
Register or Return Grille? Pick the Right Type
| Your vent | What you need | Key feature | Best for |
|---|---|---|---|
| Air blows out | Floor register | Built-in damper that opens and closes | Bedrooms, living rooms, kitchens, below windows |
| Air pulls in | Floor return grille | No damper; washable coarse mesh pre-filter | Floor returns in hallways and open rooms |
The supply side: a damper that opens and closes
A floor register's damper lets you open or close the airflow, which is handy for guest rooms or a room that runs too warm in winter. Air flows straight up through the slats. If a listing promises fancy direction control on a simple floor register, read the fine print; ours keeps it simple and says so.
The return side: no damper, easy to keep clean
Returns should never be closed off, so a return grille has no damper. Ours includes a coarse plastic mesh that catches pet hair and larger dust before it gets into the duct. To clean it, lift the grille, take out the mesh, rinse it, let it dry, and put it back. Vacuum and wipe the grille itself in place. More tips in how to clean floor vent covers.
The Green Vent Aluminum Floor Register (4x10)

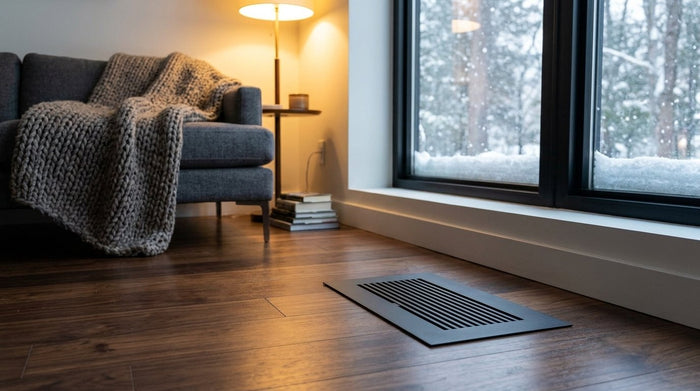

Our 4x10 aluminum floor register is made from ribbed, precision-extruded aluminum slats with a powder-coated finish. Aluminum does not rust, which matters in bathrooms, basements, and entryways where floors see moisture. It is a walkable floor design built for everyday foot traffic, and the 12" × 6" face sits flush on the floor around the 4" × 10" duct opening.
- Three finishes: White, Matte Black, and Matte Gray.
- Built-in damper: opens and closes to control how much air comes in.
- Drop-in install: no duct or subfloor changes when the hole is a standard 4x10.
Wondering how aluminum compares with steel and plastic? Read Steel vs. Aluminum vs. Plastic Floor Registers. Ready to swap it in? Our DIY floor register installation guide covers every floor type.
FAQ
Is a 4x10 floor register the same as a 10x4?
Yes. Floor vents are usually written short side first (4x10), while some listings put the long side first (10x4). Both describe a duct opening about 4 inches by 10 inches. The same goes for 4x12 vs. 12x4 and other sizes.
My old cover measures about 6 x 12. Do I need a 6x12 register?
Probably not. If the hole underneath is about 4" × 10", you need a 4x10. A 6x12 register is made for a 6" × 12" hole and will be far too large for yours.
Why is the new face bigger than my old cover?
Face sizes vary by brand. The Green Vent 4x10 face is 12" × 6", which helps hide worn floor finish and gaps around the opening. As long as the duct opening matches, it will fit.
What if my hole is a little off, like 3-1/2 x 10 or 4-1/4 x 10?
Small differences are normal in older homes. Compare the hole with the register's neck size (3-3/4" × 9-3/4" on our 4x10) and make sure the neck can drop in. If the hole is noticeably smaller, trim carefully or look for a size that matches your opening.
Can I use a floor register on a return vent?
It is better not to. A register's damper can be closed by accident, which starves your system of return air. Use a return grille, which stays open.
Can I walk on an aluminum floor register?
Yes. The Green Vent 4x10 aluminum floor register is a walkable floor design built for everyday foot traffic.
The Bottom Line
The size on a floor register describes the hole, not the cover. Lift the old register, measure the opening, decide supply or return, and you will order the right part the first time. The face will be bigger than the hole, and that is exactly how it should be.
Measured a 4" × 10" opening? Shop Green Vent 4x10 aluminum floor registers in White, Matte Black, or Matte Gray, or pick the 4x10 floor return grille for return vents.
