When cabinets cover every wall in a kitchen, the heat has to come out somewhere. In a lot of homes, that somewhere is the toe kick, the recessed strip at the bottom of your base cabinets or bathroom vanity. The problem? The cover that came with it is often a dented, yellowed piece of stamped steel that you notice every time you stand at the sink.
A toe kick vent cover is one of the easiest upgrades in the house, but it is also one of the easiest to order wrong. The opening is only about two inches tall, and the space around it is tight. Here is how to measure it, what to check before you buy, and how to make the vent look like part of the cabinetry.
Quick Answer
- Measure the duct opening behind the old cover. Most toe kick openings are about 2" tall and 10", 12", or 14" long.
- Check the height of your toe kick panel. A Green Vent 2x12 or 2x14 has a 3-3/4" tall face, so the flat kick panel needs at least that much room.
- Match the finish to the cabinet base, White for light cabinets, Matte Black for dark wood or black plinths.
What Is a Toe Kick Vent?
A toe kick vent is a supply outlet installed in the kick space under cabinets. HVAC installers use it when there is no open wall or floor area for a normal register, which is common in kitchens, bathrooms with long vanities, and laundry rooms. Air comes out low and spreads across the floor, so the room still gets heat and cooling without giving up cabinet space.
Because the kick space is short, toe kick openings are narrow: typically around 2 inches tall. That is why standard 4x10 floor registers do not fit here, and why toe kick sizes are written like 2x12 or 12x2.
How to Measure a Toe Kick Vent Opening
Step 1: Remove the old cover
Toe kick covers are usually held by two small screws or simply pressed in. Remove it and vacuum the dust that collects inside, since toe kicks sit right at floor level.
Step 2: Measure the hole, not the cover
Measure the inside of the duct opening: height first, then length. An opening around 2" × 12" needs a 2x12. One around 2" × 14" needs a 2x14. Ignore the size of the old cover, because face sizes vary by brand.
Step 3: Measure the kick panel height
This is the step most people skip. The cover's face has to sit flat on the kick panel. Measure from the floor (or the top of any baseboard or tile lip) up to the bottom of the cabinet. If that flat area is shorter than the face of the new cover, it will not sit flush.
Step 4: Check for screw room
You need a little solid material on each side of the opening to drive the mounting screws. Most cabinet kick panels are wood or MDF, which holds screws well.
Measure the Duct Opening, Not the Old Cover
We repeat this in every guide because it prevents most returns. The size printed on a vent cover, "2x12," refers to the duct opening. The visible face is always larger so it can overlap the hole. Here is how the three numbers line up for Green Vent toe kick sizes:
| Size | Duct opening (order by this) | Neck (drops into the hole) | Face (what you see) |
|---|---|---|---|
| 2x12 | 2" × 12" | 1-3/4" × 11-3/4" | 3-3/4" × 13-3/4" |
| 2x14 | 2" × 14" | 1-3/4" × 13-3/4" | 3-3/4" × 15-3/4" |
For other vent sizes around the house, see our air vent sizing guide.
Stamped Steel vs. Linear Slot Toe Kick Covers
| Basic stamped toe kick grille | Aluminum linear slot diffuser | |
|---|---|---|
| Look | Visible louvers, utility style | One clean slot, looks built-in |
| Airflow direction | Usually fixed | Adjustable slot vanes |
| Moisture near sinks and mops | Steel can rust if the coating chips | Aluminum does not rust |
| Price | $ | $$ |
| Best for | Utility rooms, budget fixes | Kitchens and baths where you see it every day |
Both do the job of moving air. The difference is how it looks and how it holds up in a spot that gets kicked, mopped, and splashed.
Where Toe Kick Vents Work Best
| Room | Typical location | Finish tip |
|---|---|---|
| Kitchen | Under the sink base or along a run of base cabinets | White for white or light shaker cabinets |
| Kitchen island | Island kick space facing the room | Match the island color, which is often darker |
| Bathroom | Vanity toe kick | Matte Black for walnut, dark wood, or black bases |
| Laundry / mudroom | Under built-in cabinets or benches | Match the cabinet base |
Tip: keep rugs, toe kick drawers, and trash bins clear of the vent so the air can reach the room. For general placement advice, see where to place HVAC supply registers.
The Green Vent 2x12 and 2x14 Linear Slot Diffuser
Our Premium Linear Slot Diffuser comes in two 2-inch sizes made for toe kicks: 2x12 White, 2x12 Matte Black, 2x14 White, and 2x14 Matte Black.
- 100% powder-coated aluminum with no plastic parts on the diffuser, so it will not rust near the sink or mop bucket.
- Adjustable slot vanes built into the slot. Use the bonus adjustment tool (or your fingers) to aim air out into the room instead of straight down at the floor.
- Clean one-slot look that reads like part of the cabinet instead of an add-on.
- Screw mount through hidden side holes, screws included.

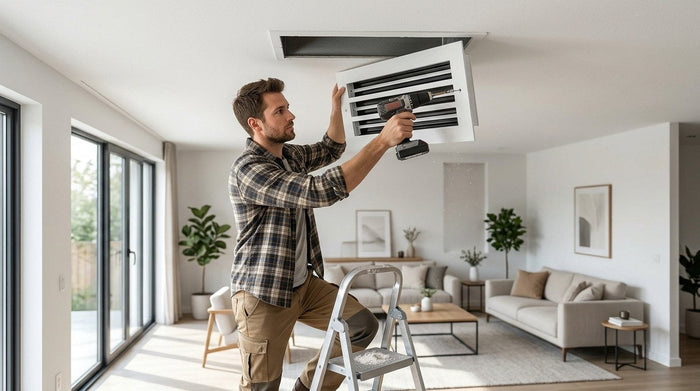

Installing it takes a screwdriver and a few minutes. Our linear slot diffuser installation guide shows the steps, and how to adjust a linear slot diffuser explains the vanes.
FAQ
Is a 2x12 the same as a 12x2?
Yes. Both describe a duct opening about 2 inches tall and 12 inches long. Some sellers list the short side first, others the long side.
My toe kick panel is only 3-1/2 inches tall. Will a 2x12 fit?
The Green Vent 2x12 and 2x14 have a 3-3/4" tall face, so a 3-1/2" panel is too short for it to sit flat. Measure the flat panel area carefully before ordering.
Can I use a toe kick vent cover for return air?
Toe kick vents are almost always supply vents, and our 2x12 and 2x14 are built for supply. If air is being pulled into the opening, see our return air grilles instead.
Can I step on a toe kick vent?
A toe kick vent sits upright in the cabinet base, not in the walking surface. It is not designed as a floor register to stand on. For a vent in the floor itself, use a floor register made for foot traffic.
How do I clean a toe kick vent?
Vacuum the slot with a brush attachment and wipe the face with a damp cloth. Because it sits at floor level, a quick vacuum every time you mop keeps dust from building up.
Should I pick white or black?
Match the cabinet base, not the floor. White disappears under white or light cabinets; Matte Black blends into dark wood vanities, black plinths, and islands.
The Bottom Line
A toe kick vent is a small, everyday detail that you see every time you cook or brush your teeth. Measure the duct opening, check that the kick panel is tall enough for the face, pick the finish that matches your cabinet base, and you will have a vent that looks like it came with the cabinets.
Measured a 2" × 12" or 2" × 14" opening? Shop Green Vent Premium Linear Slot Diffusers in White or Matte Black.
