Return Air Vent vs Supply Vent: How to Identify, Key Differences & Optimization Guide
The return air vent vs supply vent distinction is straightforward: supply vents push conditioned air into your rooms; return air vents pull that same air back to the HVAC system for reconditioning. Knowing the difference directly affects your comfort, your energy bills, and how long your system lasts. This guide shows you exactly which is which — and how to keep both working at their best. Use the table below for an instant side-by-side reference, then read on for the full identification guide.
What Are Supply Vents and Return Air Vents?
A supply vent delivers heated or cooled air from your HVAC system into a room; a return air vent pulls that same room air back for reconditioning.
Supply vents sit at the terminal end of the supply duct and push conditioned air — fresh from the air handler — into the living space. During air conditioning, supply air typically runs 14–20°F cooler than room ambient; during heating, it runs significantly warmer.
Return air vents act as the system's intake point. They collect stale, unconditioned indoor air — carrying CO₂, humidity, and dust — and route it back through the air ducts to the air handler for filtering and reconditioning. Supply and return air vents are both essential; neither functions correctly without the other to complete the closed airflow loop.
| Feature | Supply Vent | Return Air Vent |
|---|---|---|
| Airflow Direction | Pushes conditioned air out into room | Pulls room air back in |
| Temperature | 14–20°F above/below room temp | Matches room temperature |
| Typical Face Size | Smaller (4–10" wide) | Larger (often 12"+ wide) |
| Typical Location | Perimeter walls, floor, ceiling | Central walls, high hallway placement |
| Adjustable Louvers? | Yes — damper or directional fins | No — fixed open grille |
| Filter Location | No filter | Filter housed here |
Now that you know what each vent does, here's how to physically identify them in your home.
How to Identify Supply vs Return Vents in Your Home
Two fast methods help you identify supply and return vents — one works with the system running; the other works with the system off.
The Airflow Test (Most Reliable Method)
Run your HVAC fan for 3–5 minutes, then hold a tissue near each vent — a supply vent blows it away; a return vent pulls it in.
- Set your thermostat to Fan On mode and allow the system to run for 3–5 minutes.
- Hold a thin tissue or your open palm about one inch from the vent face.
- Observe the movement — supply vents push outward like a breeze; return vents pull inward like a soft vacuum.
- Never block a return vent permanently — restricted return airflow raises system static pressure and strains the air handler.
Use visual inspection instead if the system is off.
Visual Inspection (System-Off Method)
When the HVAC is off, check the grille face — supply vents have adjustable louvers or slats; return vents have a fixed, open grille and often include a filter slot.
| Supply Vent | Return Air Vent |
|---|---|
| Adjustable louvers or visible damper lever | Fixed grille pattern — no movable parts |
| Smaller face area (typically 4–10" wide) | Larger face — often several times the area of a single supply vent |
| Wall, floor, or ceiling-mounted | Wall or ceiling, often with a visible filter frame or slot |
Size is a strong visual indicator, but always confirm with the airflow test.
Understanding how each vent functions reveals why proper identification directly affects your energy bills and comfort.
Key Functional Differences: Supply vs Return in the HVAC Cycle
Supply vents create positive room pressure by pushing conditioned air in; return vents create negative pressure by pulling air out — together they form the closed airflow loop your HVAC depends on.
Filters belong on return vents only — air passes through the filter before it reaches the air handler to be reconditioned. Adjustable dampers on supply vents allow you to control airflow direction and volume per room, while return vents should always remain fully open to maintain balanced HVAC pressure.
| Myth | Fact | Why It Matters |
|---|---|---|
| "You can close a return vent to redirect airflow" | Return vents must stay fully open | Closing returns raises static pressure 15–25%, reducing system efficiency |
| "All floor vents are supply vents" | Floor vents can serve as either supply or return | Always run the airflow test to confirm |
| "Size alone identifies vent type" | Size is a useful clue, not a definitive answer | Airflow direction is the reliable confirmation |
When these functions are disrupted — by blockages, misidentification, or dirty filters — specific HVAC problems follow.
Common Problems Caused by Misidentification and Quick Maintenance Fixes
Blocking or closing the wrong vent type is the most common cause of uneven room temperatures, high energy bills, and premature HVAC wear.
| Problem | Cause | Quick Fix | Urgency |
|---|---|---|---|
| Uneven temps / hot spots | Blocked or closed supply vent | Clear obstructing furniture; adjust damper | Moderate |
| Noticeably high energy bills | Dirty or clogged return vent filter | Replace or wash the filter quarterly | High |
| Noisy or straining system | Undersized return airflow for zone | Add a dedicated return vent per zone | High |
| Short cycling | Supply vent placed directly opposite return | Reposition supply vent to perimeter wall | Moderate |
Vacuum vent faces monthly, replace or wash return filters on a consistent schedule, and never permanently seal a return vent. Proper airflow balance can improve system efficiency by 10–20%.
Where you place supply and return vents matters as much as keeping them clean.
Optimal Placement: Where Supply and Return Vents Should Be Located
Supply vents belong on exterior walls, floors, or ceilings to push conditioned air toward the room's perimeter; return vents work best in central locations — hallways, high on interior walls — to pull air back evenly.
Supply vent placement rules:

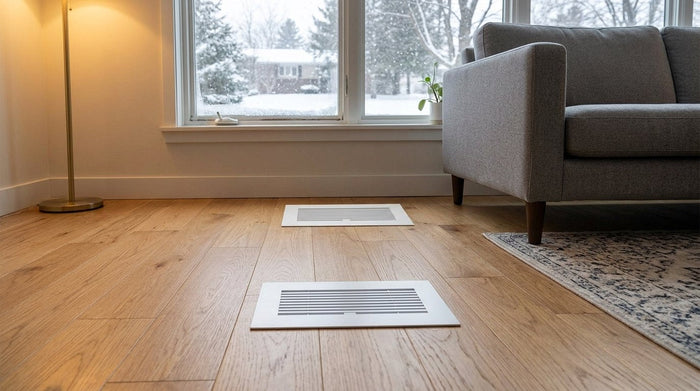

- Mount on exterior or perimeter walls, floors, and ceilings to maximize airflow throw across the room
- Place near the floor for heating cycles (warm air rises naturally) and near the ceiling for cooling (cool air drops)
- Install at least one dedicated supply vent per room
Return air vent placement rules:
- Position centrally — a main hallway or high interior wall works well for even air collection
- Avoid placing a return directly adjacent to a supply vent — short-cycling occurs when air recirculates before reaching the room
- A dedicated return per room can reduce air circulation dead zones by 30–50% compared to centralized-return-only systems, measurably supporting indoor air quality
If you're ready to upgrade your vents, the FAQs below address the most common homeowner questions before purchase.
Frequently Asked Questions: Return Air Vent vs Supply Vent
Can I Close a Return Air Vent?
No — closing a return air vent forces your HVAC system to work against negative pressure, raising static pressure, reducing efficiency, and risking coil damage over time.
Where Is the Filter — on the Supply or Return Vent?
Filters are always on return vents, not supply vents — return air passes through the filter before reaching the air handler to be reconditioned. Green Vent's Aluminum Air Return Grilles feature an integrated washable mesh pre-filter, making maintenance simple and ongoing filter costs lower.
How Many Return Vents Does a Home Need?
Most residential systems need at minimum one return vent per 800–1,000 sq ft of conditioned space; one per room is the recommended modern standard for balanced indoor air quality and even temperature distribution.
What Is the Difference Between a Vent, Register, and Grille?
A grille is a fixed cover with no airflow control; a register is a grille with an adjustable damper for supply air; "vent" is the general term used for either type.
