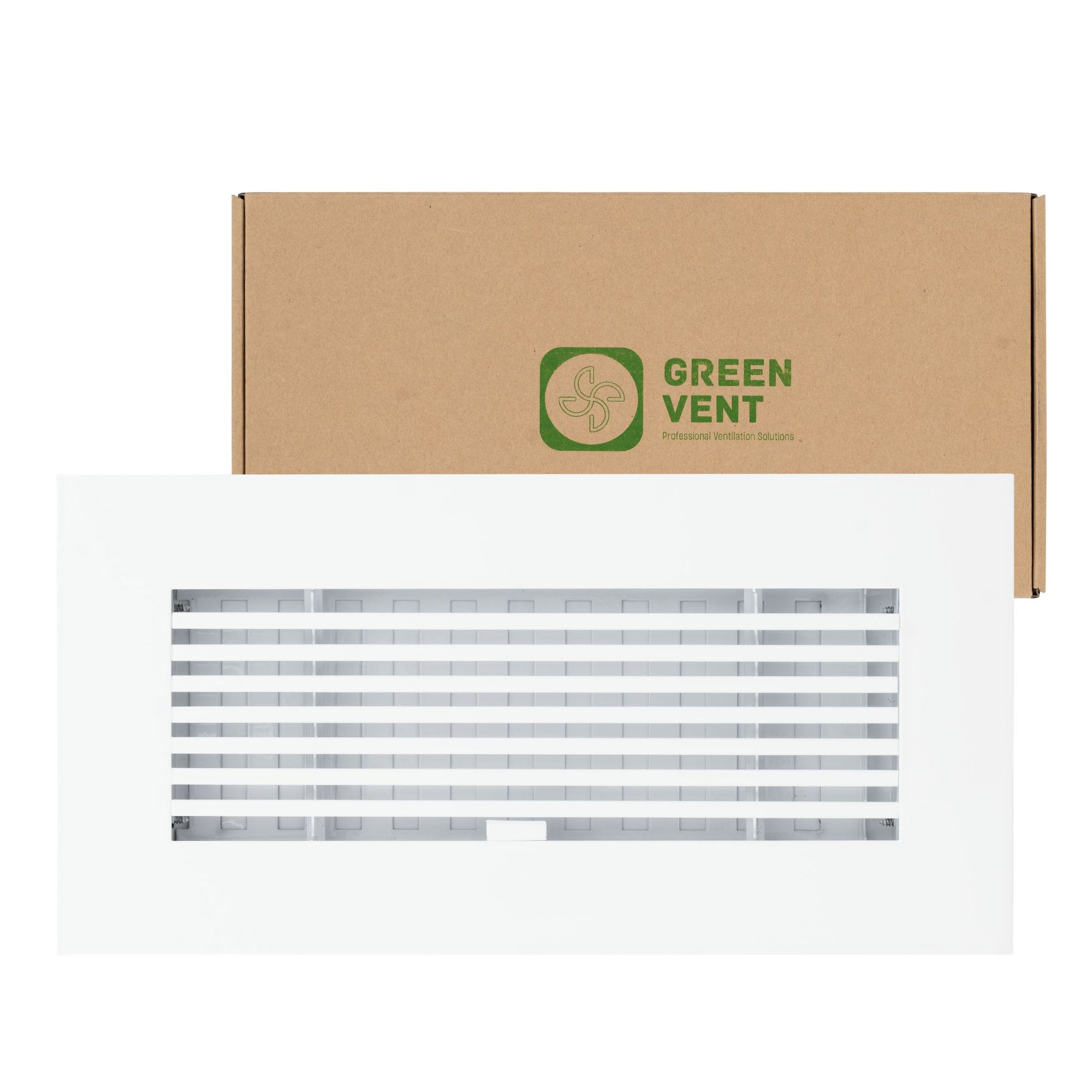

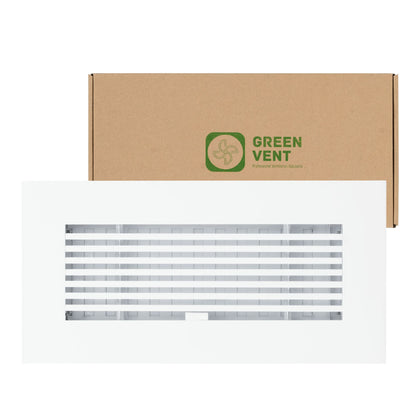

10x4 White Aluminum Floor Register - Modern Design (Duct Opening)

Replace your dated 4" × 10" stamped-steel floor register with a precision-extruded aluminum floor register built for contemporary American homes. The flush-fit 4x10 white aluminum floor register drops into your existing floor opening in seconds — no flooring rework, no special tools, no contractor needed.

The white powder-coated finish blends naturally into light hardwood, bright tile, and white-painted subfloors. From across the room, it reads as part of the floor rather than a separate fixture. Pair it with white baseboards, white window trim, or light-stained oak for a cohesive, intentional look.

This 4x10 floor register is engineered as a true surface-mount replacement. The 12" × 6" aluminum frame spans the duct opening and rests flat on the surrounding subfloor — covering any discoloration, old paint rings, or rough edges left by a previous register. No filler, no touch-up paint required.

The built-in damper lever sits fully flush between the aluminum slats at every position. Whether the damper is open, partially closed, or fully closed, nothing protrudes above the surface. No post to stub a toe on, no handle to snag a robot vacuum. Slide the lever to adjust airflow and leave the floor uninterrupted.

IMPORTANT: Measure the hole in your floor — do not measure your old vent cover.

This 4x10 aluminum floor register is designed to fit a standard 4" × 10" floor duct opening (also listed as a 10x4 floor register or 4x10 floor vent cover). The aluminum face plate is larger than the duct and overlaps the surrounding subfloor on all sides for a clean, flush finish.

• Duct opening size: 4" × 10" (this is what you measure)
• Overall face size: 12" × 6"
• Design note: The wide aluminum frame covers subfloor gaps and discoloration around your old opening. If your existing hole is slightly oversized, the frame still covers it cleanly.

Quick check:

1. Remove your existing floor register.
2. Measure the opening in your floor — not the old cover.
3. If the opening is approximately 4" × 10", this register fits.

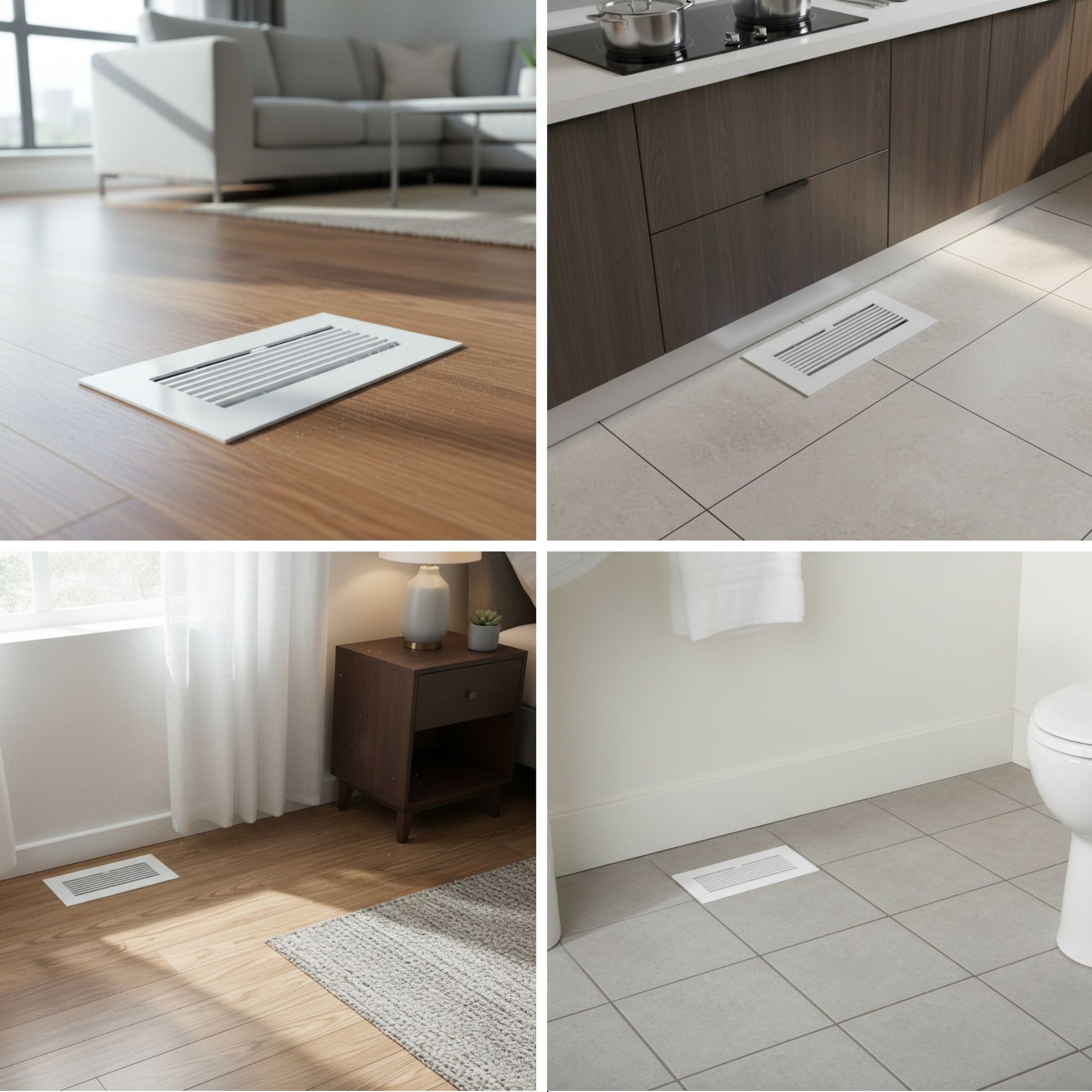

On hardwood and engineered floors

The slim aluminum profile sits flush with most hardwood and engineered wood floor thicknesses. The white powder-coated finish pairs cleanly with light-stained oak, maple, ash, and painted subfloors. Unlike plastic registers, the aluminum won’t yellow or discolor over time with temperature cycles.

On tile and luxury vinyl

The low-profile aluminum edge won’t trip or snag on harder flooring like ceramic tile, LVP, or LVT. The flush frame makes vacuuming and mopping straight-line passes without obstruction. To deep-clean the register, lift it out of the duct opening, rinse with mild soap, dry, and reset — no tools needed.

In bedrooms, home offices, and hallways

Designed for low-to-moderate household traffic. The extruded aluminum frame handles regular foot traffic in hallways, bedrooms, and living rooms without bending or flexing underfoot. The adjustable damper lets you fine-tune airflow room by room, which helps balance heating and cooling across your home.

• Precision-Extruded Aluminum Slats: Each slat is individually formed from extruded aluminum profile — not stamped sheet metal. The result is consistent slot width, cleaner parallel lines, and a surface that holds its finish under daily use better than painted steel alternatives.

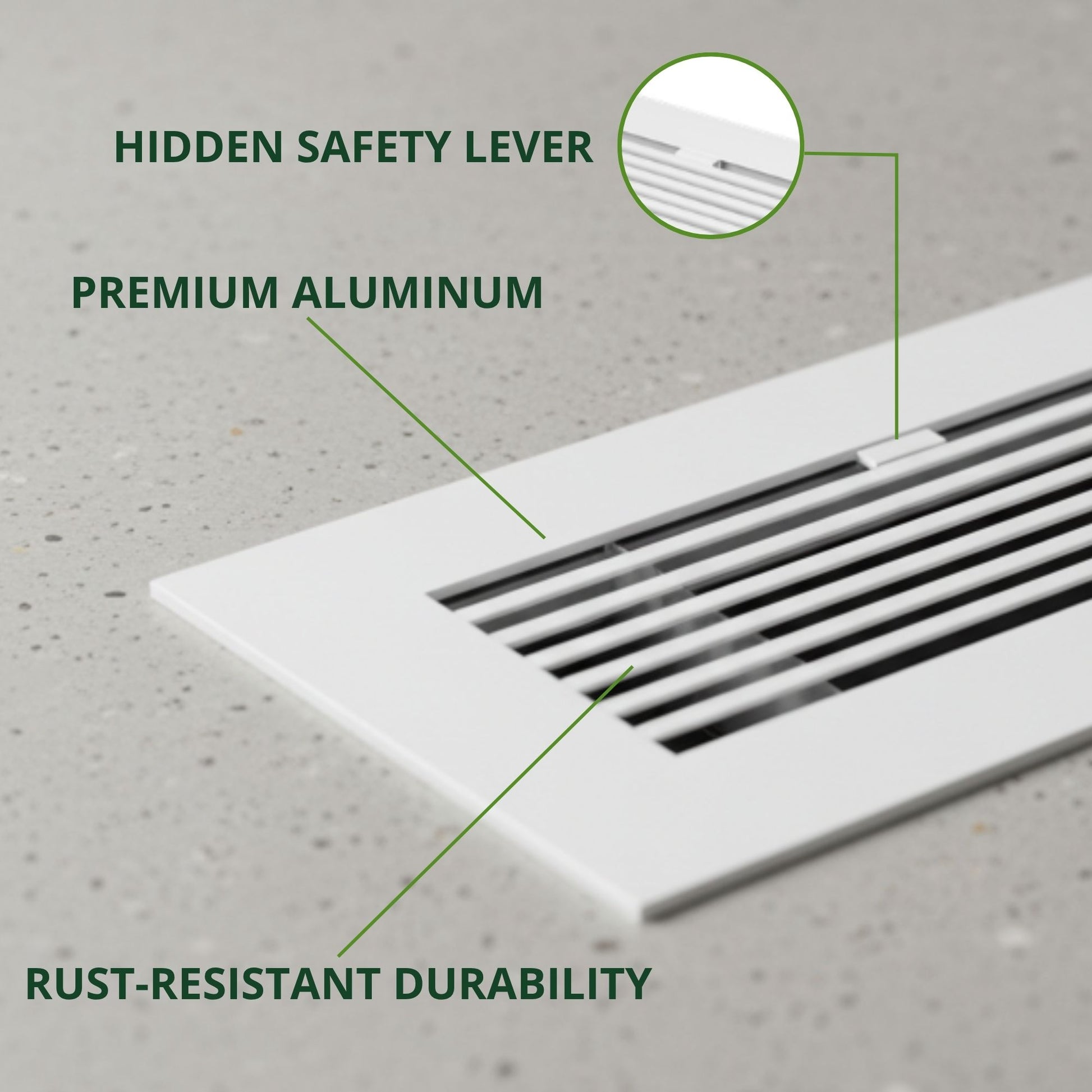

• Flush Hidden Damper Lever: The airflow control lever travels between the slats and never rises above the top surface at any setting. Fully open, partially closed, or fully closed — the floor stays flat and uninterrupted. Safer for bare feet, children, and robot vacuums.
• Rust-Proof Aluminum Construction: 100% aluminum frame means no rust risk in moisture-prone rooms like bathrooms, laundry rooms, and kitchens. Unlike painted steel registers, the aluminum body won’t flake or corrode through repeated humidity and temperature cycles.
• Wide Coverage Frame: The 12" × 6" face extends beyond the duct opening on all four sides, covering subfloor marks, old adhesive rings, and gaps left by aging or oversized registers. No patchwork, no visible seam.
• Paintable Powder-Coated Surface: The white powder-coat finish accepts standard spray primer and paint for an exact color match with your floor trim or baseboards. Lightly sand, prime, and paint — extruded aluminum holds paint better than plastic and won’t crack or peel.

Basic installation requires no tools. Set the register face-up over the floor duct opening, align the frame with the surrounding floor, and you’re done. The weight of the aluminum frame holds it in position during normal foot traffic.

For permanent placement — or in high-traffic hallways — use the included screws to secure the frame edge to the subfloor. For added scratch protection on premium hardwood, place felt pads on the underside of the frame corners before securing.

1. What size do I order — 4x10 or face size?

Order by duct opening size: 4x10. The face plate is larger (12" × 6") and overlaps the subfloor around the opening. Always measure the hole in your floor — not the old register face you’re replacing.

2. Will this floor register hold up to foot traffic?

Yes, for normal household use. The extruded aluminum frame with 4mm top surface handles regular foot traffic in hallways, bedrooms, and living rooms without bending. For high-traffic commercial settings or spaces with frequent heavy appliance movement, consider a heavier cast register.

3. Can I install this on a wall or ceiling?

No — this register is designed specifically for floor duct openings. For wall or ceiling HVAC vents, browse the aluminum linear slot diffuser collection, which is designed for wall and ceiling mounting.

4. Does it come with a filter?

No. This is a floor supply register with an adjustable damper for controlling airflow. Filters belong on return air vents, not supply registers. If you need a floor return grille with a washable pre-filter, visit the air return grille collection.

5. Will it scratch my hardwood floor?

The flush aluminum profile sits flat and the powder-coated finish is smooth. For added protection on premium hardwood, apply felt pads to the underside frame corners during installation — this also compensates for any slight unevenness in the subfloor.

6. How do I clean it?

Vacuum dust through the slots as part of your regular floor cleaning. To deep clean, lift the register out of the opening, rinse with mild soap and water, dry completely, and set it back in place. The drop-in design makes this a quick task without any tools.

7. Is the white finish paintable?

Yes. The white powder-coated finish accepts standard spray primer and paint for an exact color match. Lightly sand the surface first, apply primer, then paint. The extruded aluminum holds paint more durably than plastic register surfaces.

8. What’s the difference between aluminum and steel floor registers?

Aluminum won’t rust, weighs less, and accepts cleaner powder-coat finishes — especially important in bathrooms, laundry rooms, and kitchens where humidity is a factor. Steel handles heavier commercial loads but corrodes in moist environments over time. For a steel option, browse the steel floor register collection.
