"Linear diffuser" and "slot diffuser" are largely synonymous terms used interchangeably across the HVAC industry — both refer to elongated, narrow air outlets that distribute conditioned air through one or more thin slot openings. So if you have been searching "linear diffuser vs slot diffuser" expecting to find two fundamentally different products, the short answer is: you are looking at the same product family.
The meaningful divergence appears at the configuration level — single-slot versus multi-slot — and in the distinction between a true linear slot diffuser and a linear bar grille. This guide resolves that terminology confusion and helps you choose the right configuration for your home.
What Are Linear Diffusers and Slot Diffusers?
A linear diffuser and a slot diffuser describe the same type of HVAC air outlet — a long, narrow fitting that distributes conditioned air through one or more thin openings called slots. The term "linear" emphasizes the elongated shape; "slot" describes the opening geometry. Both appear in product specs, manufacturer literature, and installation guides as interchangeable labels.
Structurally, the fitting consists of a slot face, adjustable vanes inside each slot, and a neck that connects to the ductwork (commercial installations often add a plenum box). The design leverages the Coanda effect, where air discharged along a ceiling surface travels the length of the room before descending into the occupied zone — delivering even, draft-free comfort.
The combined term "linear slot diffuser" is the most precise industry descriptor — it is the name you will see on Green Vent's linear slot diffusers.
Where the terminology does create real differences is in configuration — and choosing the wrong one for your ceiling or wall affects comfort, not just aesthetics.
How Single-Slot and Multi-Slot Configurations Actually Differ
The practical difference between "linear" and "slot" diffuser labels appears at the configuration level: single-slot models concentrate airflow in one narrow stream, while multi-slot models spread it across two to four parallel openings for wider room coverage.
Single-slot diffusers work well for focused, quieter airflow at lower velocities — a solid choice for hallways, smaller bedrooms, and under-window perimeter runs. Multi-slot models (two to four slots) spread the same air over a wider face, making them well-suited for open-plan living rooms and kitchens where uniform temperature distribution matters most. A brief note on linear bar grilles: these use exposed parallel bars rather than enclosed slots, produce higher air turbulence, and are not the same product — they suit perimeter wall placements, not ceiling aesthetics.
All Green Vent linear slot diffusers are 100% powder-coated aluminum — rust-proof and available in White and Matte Black, with built-in adjustable slot vanes and a bonus vane adjustment tool for post-install tuning.
| Feature | Single-Slot Diffuser | Multi-Slot Diffuser (2–4) | Linear Bar Grille |
|---|---|---|---|
| Airflow Pattern | Focused, narrow stream | Wide, even distribution | High-mix, directional |
| Best Room Size | Small–Medium (bedroom, hallway) | Medium–Large (open-plan) | Perimeter walls |
| Noise Level | Very quiet at low airflow | Quiet at moderate airflow | Moderate |
| Aesthetics | Ultra-minimal, one fine line | Sleek, architectural accent | Exposed bars, industrial |
| Adjustability | Vane-controlled | Vane-controlled per slot | Directional only |
Knowing the configuration difference is step one — the next step is matching it to your specific ceiling or wall placement.
Choosing the Right Configuration for Your Home
For most modern homes, the right choice comes down to placement — ceiling or wall — and the size of the room the diffuser needs to condition. Both single-slot and multi-slot linear slot diffusers support supply air and return air functions; Green Vent models serve both. Aluminum construction also makes them rust-proof — an important advantage for kitchens, bathrooms, and high-humidity spaces where steel vents corrode over time.
For Ceiling Applications

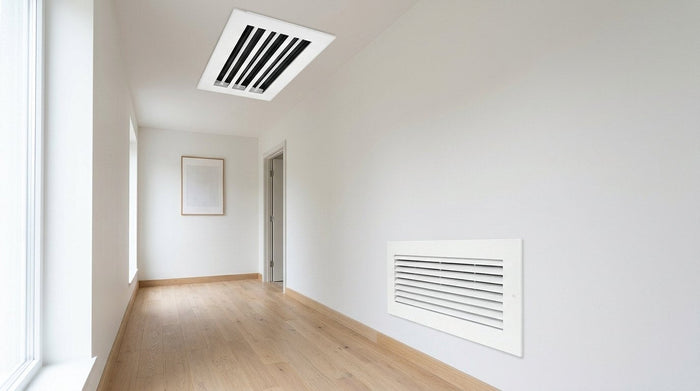

Ceiling-mounted linear slot diffusers are the most common residential application because the Coanda effect allows air to travel along the ceiling surface, distributing evenly before descending into the occupied zone. Multi-slot ceiling diffusers suit open-plan living areas and kitchens where uniform temperature across a large floor area is the priority, while single-slot models suit corridors, smaller bedrooms, and under-skylight runs. All Green Vent models install in ceilings or walls and are sized by duct opening, from 4×6 up to 12×12 (plus 2×12 and 2×14). Learn how to measure your duct opening before you order.
For Wall Applications
Wall-mounted linear slot diffusers work best for perimeter supply in rooms where ceiling installation is not possible, such as finished basements or rooms with dropped soffits. Single-slot wall diffusers direct air horizontally across the room — effective for heating-dominant climates where warm air needs to push downward. The adjustable slot vanes let you angle the discharge without removing the diffuser, which is a clear DIY-friendly advantage. Avoid standard bar grilles on interior walls if aesthetics matter; the slot profile sits flush for a clean, modern finish.
A Quick Note on Installation
Green Vent linear slot diffusers are sized by duct opening: the neck slides into your existing rectangular duct opening and the face screws flat to the ceiling or wall, so a typical retrofit needs only a drill and the included screws. The most common pitfall is ordering by face size instead of duct opening — the face is always larger than the hole. For a full walkthrough, refer to the complete linear slot diffuser installation guide.
Before selecting, review these answers to the most common questions homeowners ask.
Frequently Asked Questions
Is a Linear Diffuser the Same as a Slot Diffuser?
Yes — "linear diffuser" and "slot diffuser" are used interchangeably across HVAC product lines and engineering specifications; both refer to an elongated air outlet with one or more narrow slot openings. The combined term "linear slot diffuser" is the most precise and widely adopted industry label for this product type.
Single Slot vs. Multi-Slot: Which Should I Choose for an Open-Plan Room?
For an open-plan room, a multi-slot diffuser is the better choice because multiple parallel openings distribute conditioned air over a wider area, reducing the risk of cold or warm spots across large floor areas. Green Vent offers 2-slot, 3-slot and 4-slot sizes for standard residential duct openings.
Can I Install a Linear Slot Diffuser Myself?
Yes — modern aluminum linear slot diffusers are designed for DIY installation using only basic tools, provided the duct opening is correctly measured beforehand. Green Vent's aluminum construction keeps each unit lightweight and rust-proof, and the built-in adjustable vanes let you fine-tune airflow after installation. Make sure to measure your duct opening first before ordering.
Browse Green Vent Linear Slot Diffusers
Green Vent's aluminum linear slot diffusers are available in single-slot and multi-slot configurations, sized by duct opening from 4×6 to 12×12, plus 2×12 and 2×14 for toe kicks. Every unit is built from rust-proof aluminum — a reliable fit for kitchens, bathrooms, and any high-humidity space in the modern home.
- 100% rust-proof aluminum — suitable for kitchens, bathrooms, and humid environments
- Ceiling and wall placement (4" and 2" sizes also fit floors) — supports both supply air and return air
- Adjustable slot vanes + bonus adjustment tool — aim the airflow without professional tools
Explore all linear slot diffuser sizes and configurations.
